Oil / Gas Drilling Rigs
Surplus to the needs of a large North American drilling contractor.
Rigs have been properly stacked in excess of two years.
Offers will be considered after inspection.
Extensive inventories available upon request
8,000' - 10,000' Oil and Gas rigs
850 HP TSM 7000A MECHANICAL DRILLING RIG (Ref#8070Rb)
Rated depth: 2100m, drill pipe 114mm
17 loads (winter)
Dreco Telescopic Double Mast
Dreco one piece / step down substructure
TSM 7000A drawworks
Oilwell A600PT mud pump
52.53 m3 mud system
Derrick Flo-Line shale shaker
229mm x 21,000 kPa BOP stack
76.2mm x 50mm x 20,7000 kPa choke manifold
850 HP TSM 7000 MECHANICAL DRILLING RIG (Ref#8070Rg)
Rated depth 11,500’ with 4-1/2” drill pipe
31 loads (no crane required)
TSM 7000 drawworks, 380,000# max hoisting capacity with 10 lines, Eaton 324 WCBD aux brake
P/B Detroit Diesel Series 2000 (840 hp) engine
Lee C. Moore 127’ x 390,000# (with 10 lines) triple cantilever mast
Mastco one piece center load substructure, K-B ground 15’, vertical clearance for BOPs 13.4’
Oilwell 20-1/2” rotary table
Emsco LB300 swivel
Skytop Brewster 250T block/hook, BJ bails and elevator
1-1/8” drill line
8,600’ of 4-1/2” E-75 (4-1/2” H90) drill pipe
2,800’ of 4-1/2” X-95 (4-1/2” H90) drill pipe
(3) 9” (6-5/8” Reg) drill collars, (21) 6-1/2” (4-1/2” H90) drill collars
(2) Oilwell 850PT triplex mud pumps, p/b Detroit Diesel Series 2000 (775hp) engines
(2) 7 compartment mud tanks 1300 bbl, with independent mud mixing systems Mission 5 x 6
(3) Radicon agitators
(2) Swaco Flo-Line Linear ALS shale shakers
Mud gas separators
BOP:
Shaffer annular 11” x 5000 psi
Townsend single gate type 82 11” x 5000 psi
Townsend double gate type 82 11” x 5000 psi
Accumulator: Oilco 7 srtation / PLC controlled
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plants, instrumentation, boiler, kelly spinner, drill pipe spinner, fuel storage water storage
Located Canada
Price: $3,200,000
850 HP TSM 7000 MECHANICAL DRILLING RIG (Ref#8070Ro)
Rated depth 8,500’ using 4-1/2” drill pipe
23 loads (no crane required)
TSM 7000 drawworks, 325,000# max hoising capacity, 324 Eaton auxiliary brake
P/B Cat 3406C DITA (520 hp) engine
Butler Parks 100’ x 275,000# double cantilever mast
Command substructure, 1 piece center load, self-elevating KB-gound 17.5’, vertical clearance for BOP 12.5’
BDW 17-1/2” rotary table
Twister S150 swivel
Ideco UTB-160 block/hook, BJ bails, WTM elevator
1-1/8” drilling line
8350’ of 4-1/2” E-75 drill pipe
(17) 6-1/2” drill collars (4-1/2 XH), (2) 9” drill collars (6-5/8” Reg)
(2) OPI 700 HDL mud pump, 8” stroke, p/b (2) Cat 3408HEUI engines @ 800 hp each
5 compartment mud tank, 620 bbl, with Mission 5 x 6 mud pump
Swaco/Linear shale shaker, Mud gas separator
BOP:
Shaffer annular SPH 11” x 3000 psi
Shaffer RS pipe ram 11” x 3000 psi
Shaffer LWP blind ram 11” x 3000 psi
Shaffer LWP pipe ram 11” x 3000 psi
Accumular: Valvon – Control Panel 5 station / PLC controlled
Manifold: Master BOP controls are located at accumulator and remote controls at doghouse
Light plants, Instrumentation, Boiler, Kelly Spinner, Drill pipe spinner, fuel storage, water storage
Located Canada
Price: $975,000
700 HP SUPERIOR MECHANICAL DRILLING RIG (Ref#8070Rn)
Rated depth 9,800’ using 4-1/2” drill pipe
24 loads (no crane required)
Superior 700 PSD drawworks, 280,000 lb max hoisting capacity, Parmac 22” brake
P/B Cat 3412 diesel engine
Falcon 126’ x 295,000# triple cantilever mast
Mastco single piece center load substructure, self leveling, KB-ground 17’, Vertical clearance for BOP 12.5’
Ideco 17-1/2” rotary table
Continental Emsco LB-200 swivel, Gardner Denver 200T block/hook, BJ bails, WTM elevator
1-1/8” drilling line
7600 meters of 4-1/2” drill pipe (4-1/2” XH)
(2) 8” drill collars (6-5/8” Reg), (18) 6-1/2” drill collars (4-1/2” XH)
(2) OPI 700 HDL mud pumps, 8” stroke p/b Cat 3408E (700 hp) engines each
5 compartment mud tank, 670 bbl, w/(2) independent mud mixing systems Mission 5 x 6, (2) agitators
(2) Swaco ASL shale shakers, mud gas separator,
BOP:
Shaffer SPH annular 11” x 3000 psi
Shaffer LWS pipe ram 11” x 3000 psi
Shaffer LWS blind ram 11” x 3000 psi
Shaffer LWS pipe ram 11” x 3000 psi
Accumulator: Koomey 60 – PLC Control Panel 5-station
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plant, instrumentation, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $3,000,000
700 HP GARDNER DENVER 700 MECHANICAL DRILLING RIG (Ref#8070Rj)
Rated depth: 11,000’ using 4-1/2” drill pipe
Gardner Denver 700 drawworks, 580,000# max hoisting capacity, Parmac Hydramatic brake
P/B (2) Cat 3412 diesel engines (900 hp)
Carmco M-550 triple cantilever 134’ x 390,000# mast
Carmco box on box substructure, 18’ KB-ground, 14.5’ clearance for BOPs, 300,000# setback capacity
Oilwell A20-1/2 rotary table
National P300 swivel
BJ/National hook block
1-1/8” drill line
(2) 9” drill collars, (18) 6-1/4” drill collars
(2) mud tanks, 8 compartments, 5 x 6 Mission pump, (4) Radicon agitators
(2) Swaco Linear shale shakers
Mud Gas Separators
BOP:
Shaffer SPH annular 11” x 5000 psi
Shaffer LWS pipe ram 11” x 5000 psi
Shaffer LWS blind ram 11” x 5000 psi
Accumulator Marlin 2-station 3000 psi
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plant, instrumentation, kelly spinner, drill pipe spinner, fuel storage, water storage
Price: $975,000
550 HP NATIONAL 370 MECHANICAL DRILLING RIG (Ref#8070Rf)
Rated depth 9,800’ using 4-1/2” drill pipe
26 loads (no crane required)
National 370 drawworks, 250,000# max hoisting capacity, Parmac Aux brake
P/B Cat 3406 (525 hp_ engine
National DSI 131’ x 325,000# triple cantilever mast
Mastco one piece jack knife substructure, KB-ground 17.5’, vertical clearance for BOP: 12.5’
National C175 17-1/2” rotary table
National P200 swivel
National block/hook, BJ bails and elevator
1-1/8” drilling line
9,350’ of 4-1/2” drill pipe (4-1/2 XH)
(2) 8” drill collars (6-5/8 Reg), (21) 6-1/4” drill collars, (4-1/2 XH)
National 8-P80 Triplex mud pump 8-1/2” stroke w/Cat 3412 Hevi (825 hp) engine
National 8-P80 Triplex mud pump 8-1/2” stroke w/Cat D379 (603 hp) engine
3 compartment mud tank, 675 bbl w/(3) independent mud mixing systems, (2) agitators
Swaco Super shale shaker, mud gas separators
BOP:
Shaffer LWS pipe ram 11” x 3,000 psi
Hydrill GK annular 11” x 3,000 psi
Shaffer LWS pipe ram 11” x 3,000 psi
Shaffer B blind ram 11” x 3,000#
Accumulator: Control Technology 8 station / PLC controlled
Manifold: Master BOP controls located at lightplant and remote controls at doghouse
Light plant, instrumentation, boiler, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $2,100,000
500 HP GARDNER DENVER 500 MECHANICAL DRILLING RIG (Ref#8070Ri)
Rated depth 9,800’ using 4-1/2” drill pipe
24 loads (no crane required)
Gardner Denver 500 hp drawworks, 320,000# hoisting capacity on 6 lines, Parmac aux brake
P/B Detroit Diesel Series 60 (563 hp)
Dreco 128’ x 340,000# triple cantilever mast
Dreco one-piece substructure KB-ground 16’ x 275,000# max load capacity
National C-175 rotary table (17-1/5”
National N47 swivel 440,000#
McKissick / BJ hook block 500,000#
1-1/8” drilling line
Drill pipe: 8200’ of 4-1/2” (4-1/2” H90 conn), 278’ of 4-1/5” HWDR (4-1/2 H90 conn)
(5) 9” drill collars (6-5/8” Reg), (21) 6-3/4” drill collars (5” H90 conn)
(2) Gardner Denver PZ7 mud pumps with Cat D379 diesel engine (576 hp), 7” stroke
(4) compartment mud tank 3178 cu ft w/(2) independent mud mixing systems, (2) Radicon agitators
(2) Linear Motion shale shakers
Mud/Gas separators
BOP:
Hydrill GK Annular 11” x 3000 psi
Shaffer LWS pipe ram 11” x 3000 psi
Shaffer LWS blind ram 11” x 3000 psi
Accumulator: Control Technology 3000 psi
Manifold: Master BOP controls located at the accumulator and remote controls at doghouse
Light plant: Detroit Series 60, 630 hp
Pason penless instrumentation, kelly spinner, drill pipe spinner, fuel and water storage
Price: $1,950,000
500 HP TSM 6000A MECHANICAL DRILLING RIG (Ref#8070Ra)
Rated depth: 2100m, drill pipe 114mm
14 loads (winter)
Dreco Telescopic Double Mast
Dreco one piece / step down substructure
TSM 6000A drawworks
API 700 HDL mud pump
66 m3 mud system
Swaco ALS II shale shaker
229mm x 21,000 kPa BOP Stack
77mm x 76mm x 34,500 kPa choke manifold
500 HP TSM 6000A MECHANICAL DRILLING RIG (Ref#8070Rk)
Rated depth 7,800’ using 4” drill pipe
18 loads (no crane required)
TSM 6000A drawworks, Parkersburg 560mm aux brake
P/B Cat 3406 (450 hp) diesel engine
105’ x 215,000# telescopic double mast
1 piece step down center load substructure, self leveling, KB- Ground 15’, vertical clearance for BOPs 13’
BDW R-17.5 rotary table
Twister S-150 swivel
Ideco UTB-160 block/hook, BJ bails, WTM elevator
1-1/8” drilling line
7,800’ of 4” drill pipe
(12) 6-1/4” drill collars
(2) 8” drill collars
Gardner Denver PZ8 mud pump, 8” stroke, p/b Cat 3412 engine
5 compartment mud tank, 620 bbl, w/independent mud mixing system Mission 5 x 6
Swaco/Linear Motiion ALS shale shakers
Mud gas separator
BOP
Shaffer SPH annular 9” x 3000 psi
Shaffer LWP pipe ram 9” x 3000 psi
Shaffer LWP blind ram 9” x 3000 psi
Accumulator: Wagner PLC Control Panel 5-station
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plant, instrumentation, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $2,200,000
500 HP TSM 6000 MECHANICAL DRILLING RIG (Ref#8070RL)
Rated depth 7,800’ using 4” drill pipe
18 loads (no crane required)
TSM 6000 drawworks, 188,000# max hoisting capacity, TSM 22” Hydromatic brake
P/B Cat 3406 (500 hp) diesel engine
105’ x 215,000# telescopic double mast
1 piece step down center load substructure, self leveling, KB-ground 15’, Vertical clearance for BOPS 10.9’
Intercon 17.5 rotary table
Twister 150 ton swivel, Brewster 150T block/hook, BJ bails, WTM elevator
1-1/8” drilling line
7,800’ of 4” (4” FH) drill pipe
(22) 6-1/4” drill collars, (2) 8” drill collars
National 8-P80 triplex mud pump, 8-1/2” stroke p/b Cat 3412 (825 hp) engine
5 compartment mud tank, 620 bbl, w/independent mud mixing system Mission 5 x 6
DFTS 275 TM shale shakers
Mud gas separator
BOP
Shaffer SPH annular 9” x 3000 psi
Shaffer LWP pipe ram 9” x 3000 psi
Shaffer LWP blind ram 9” x 3000 psi
Accumulator: Wagner PLC Control Panel 5-station
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plant, instrumentation, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $2,100,000
500 HP TSM 6000 MECHANICAL DRILLING RIG (Ref#8070Rm)
Rated depth 7,800’ using 4” drill pipe
20 loads (no crane required)
TSM 6000 drawworks, 188,000# max hoisting capacity, Parkersburg brake
P/B Cat C15 (525 hp) diesel engine
105’ x 218,000# telescopic double mast
1 piece stop down denter load substructure, self leveling, KB-ground 15’, Vertical clearance for BOPs 10.9’
BDW 17-1/2” rotary table
Twister S150 swivel, 150T McKissick block/hook, BJ bails, WTM elevator
1-1/8” drilling line
7800’ of 4” drill pipe (4”FH), (18) 6-1/2” drill collars, (2) 8” drill collars
OPI 700 HDL Triplex mud pump p/b (2) Cat 3176B engines
OPI 700 HDL Triplex mud pump p/b Cat 3408
5 compartment mud tank, 620 bbl, w/independent mud mixing system Mission 5 x 6
DFTS 275 TM shale shakers
Mud gas separator
Shaffer SPH annular 9” x 3000 psi
Shaffer LWP pipe ram 9” x 3000 psi
Shaffer LWP blind ram 9” x 3000 psi
Accumulator: Wagner PLC Control Panel 5-station
Manifold: Master BOP controls located at accumulator and remote controls at doghouse
Light plant, instrumentation, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $2,200,000
500 HP TSM 6000 MECHANICAL DRILLING RIG (Ref#8070Rp)
Rated depth 8,500’ using 4-1/2” drill pipe
21 loads (no crane required)
TSM 6000 drawworks, 350,000# max hoisting capacity, Parmac aux brake
P/B Cat 3406E (500 hp) engine
Derrick Manufacturing 105’ x 280,000# double cantilever mast
C.D.E. one piece center load substructure, KB-ground 15’, vertical clearance for BOPs 12’
Oilwell SA 17.5 rotary table
Twister S150 swivel
Ideco UTB 160 block/hook, BJ bails, WTM elevator
1-1/8” drilling line
5500’ of 4-1/2” E75 drill pipe (4-1/2 XH)
(21) 6-1/2” drill collars (4:H90), (1) 8” drill collar (6-5/8” Reg.)
Gardner Denver PZ8 Triplex pump, 8” stroke p/b Cat 3412 (825 hp) engine
5 compartment mud tank, 730 bbls, w/independent mud mixing system Mission 5 x 6, (2) Brook Hansen agitators
DFTS/Linear Motion shale shaker, mud gas separator
BOP:
Townsend Type 84 annular BOP 9” x 3000 psi
Townsend Type 88 pipe ram 9” x 3000 psi
Townsend Type 88 blind ram 9” x 3000 psi
Accumulator PLC Control Panel 5-station
Manifold: Master BOP controls located at accumulator, remote control at doghouse
Light plants, instrumentation, boiler, kelly spinner, drill pipe spinner, fuel storage, water storage
Located Canada
Price: $2,100,000
300 HP DRECO SUPERIOR D300 PSD MECHANICAL DRILLING RIG (Ref#8070Rc)
Rated depth: 1500m, drill pipe 114mm
12 loads (winter)
Dreco Telescopic Double Mast
Dreco one piece / step down substructure
Dreco-Superior D300-PSD drawworks
Emsco F500 mud pump
51.9 m3 mud system
Swaco linear shale shaker
229mm x 21,000 kPa BOP stack
76mm x 51mm x 21,000 kPa choke manifold
300 HP DRECO SUPERIOR D300 PSD MECHANICAL DRILLING RIG (Ref#8070Rd)
Rated depth: 1500m, drill pipe 114mm
13 loads (winter)
Dreco Telescopic double mast
Rigmaster one piece substructure
Dreco Superior D-300 PSD drawworks
Gardner Denver PZ-7 mud pump
70 m3 mud system
Swaco Flowline shale shaker
229mm x 21,000 kPa BOP stack
76mm x 51mm x 21,000 kPa choke manifold

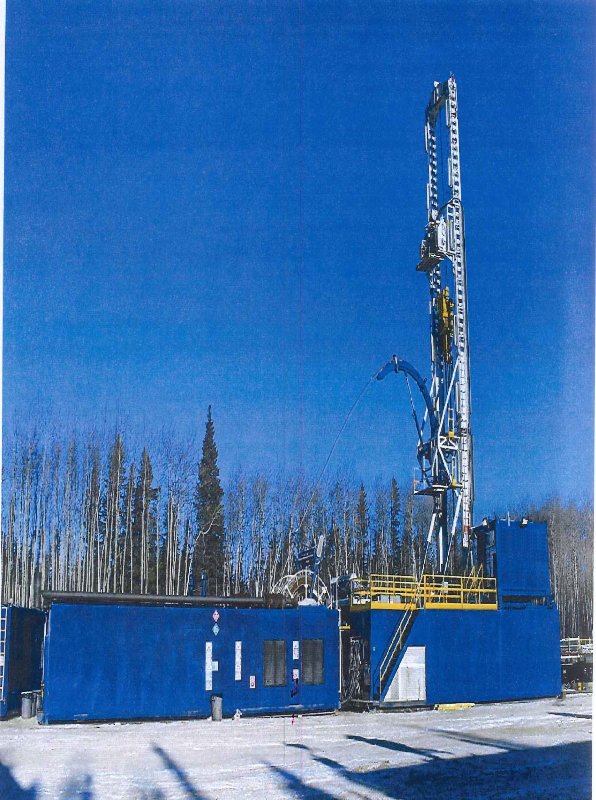

HYBRID TOPDRIVE/COIL TUBING AC POWERED DRILLING RIG – Four Available (Ref#8070Rq)
400 HP Foremost drawworks
250 HP Stewart & Stevenson Integral M80 injector
250 HP Foremost Model 240 Integral top drive
Foremost single one piece mast
Foremost 24 wheel air suspension one piece trailer sub
Gardner Denver PZ-9 mud pump
229mm x 21,000 kPa BOP stack
